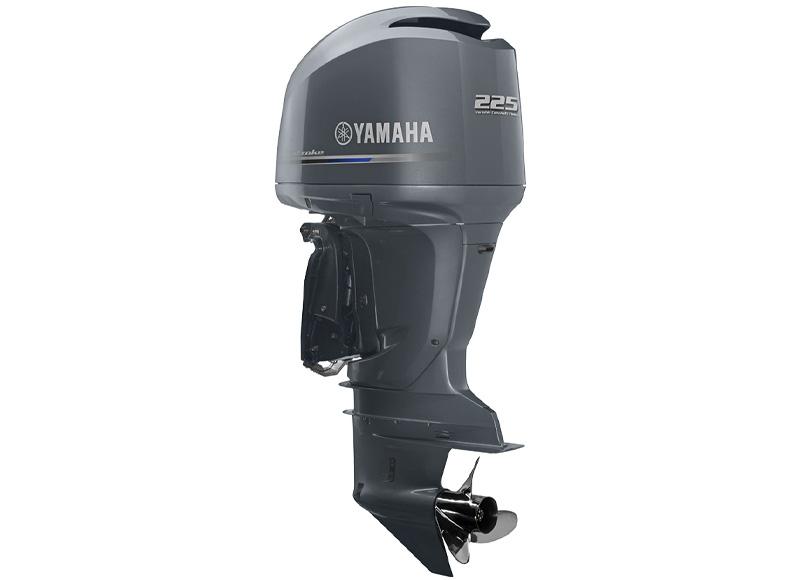

F225BETX
165.5 kW (225 ps)
165.5 kW (225 ps)
For enquiry, please whatsapp to 6612 0260.

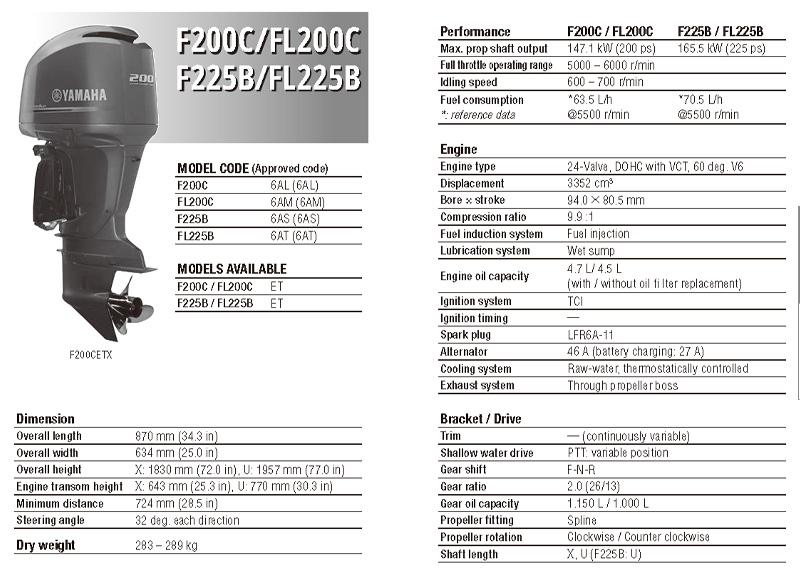

| Performance | |
| Max.prop Shaft Output | 165.5 kW (225 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 600 – 700 r/min |
| Fuel Consumption | 70.5 L/h @5500 r/min |
| Engine | |
| Engine Type | 24-Valve, DOHC with VCT, 60 deg. V6 |
| Displacement | 3352 cm³ |
| Bore X Stroke | 94.0 × 80.5 mm |
| Compression Ratio | 9.9 :1 |
| Starting Enrichment | Electric Starter |
| Fuel Induction System | Fuel injection |
| Lubrication System | Wet sump |
| Engine Oil Capacity | 4.7 L/ 4.5 L (with / without oil filter replacement) |
| Ignition System | TCI |
| Spark Plug | LFR6A-11 |
| Alternator | 46 A (battery charging: 27 A) |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | ― (continuously variable) |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 32 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.0 (26/13) |
| Gear Oil Capacity | 1.150 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 643 mm (25.3 in) |
