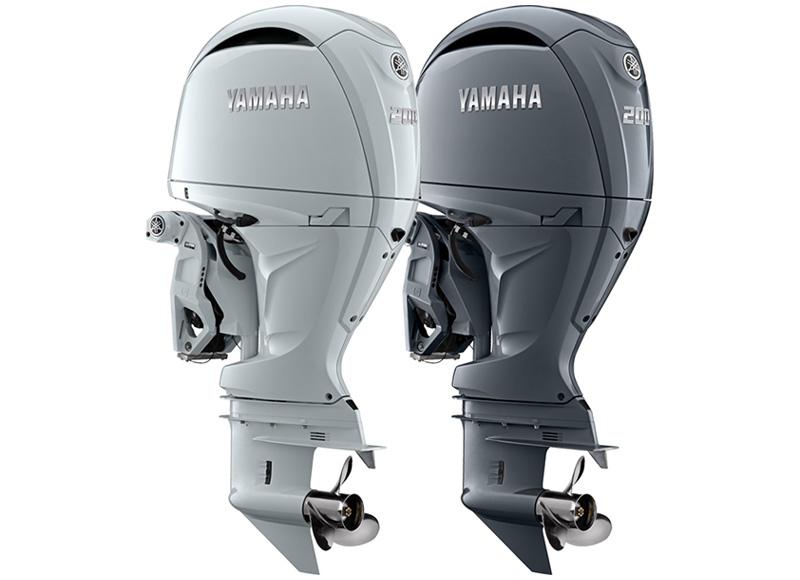

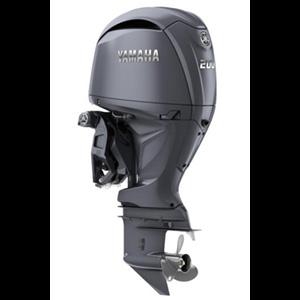

F200NSTX
147.1 kW (200 ps)
147.1 kW (200 ps)
For enquiry, please whatsapp to 6612 0260.

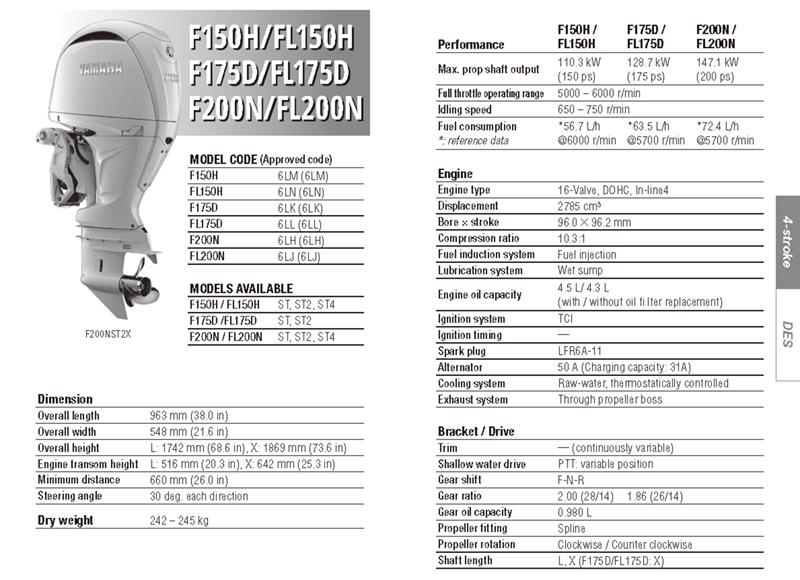

| Performance | |
| Max.prop Shaft Output | 147.1 kW (200 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 650 – 750 r/min |
| Fuel Consumption | 72.4 L/h @5700 r/min |
| Engine | |
| Engine Type | 16-Valve, DOHC, In-line4 |
| Displacement | 2785 cm³ |
| Bore X Stroke | 96.0 × 96.2 mm |
| Compression Ratio | 10.3:1 |
| Starting Enrichment | Electric starter |
| Fuel Induction System | Fuel injection |
| Oil fuel mixing ratio | 4.5 L/ 4.3 L (with / without oil filter replacement) |
| Lubrication System | Wet sump |
| Ignition System | TCI |
| Spark Plug | LFR6A-11 |
| Alternator | 50 A (Charging capacity: 31A) |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | ― (continuously variable) |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 30 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 1.86 (26/14) |
| Gear Oil Capacity | 0.980 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 642 mm (25.3 in) |
