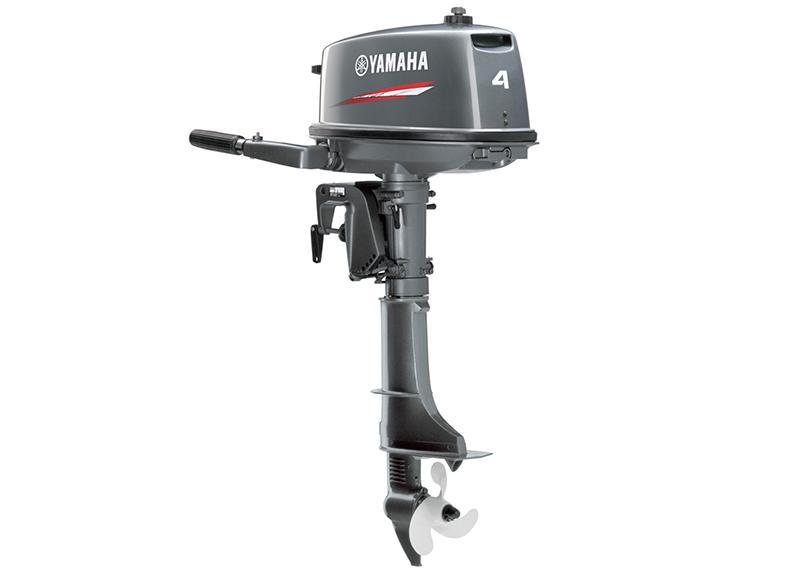

4DMHL
2.9 kW (4 ps)
2.9 kW (4 ps)
For enquiry, please whatsapp to 6612 0260.

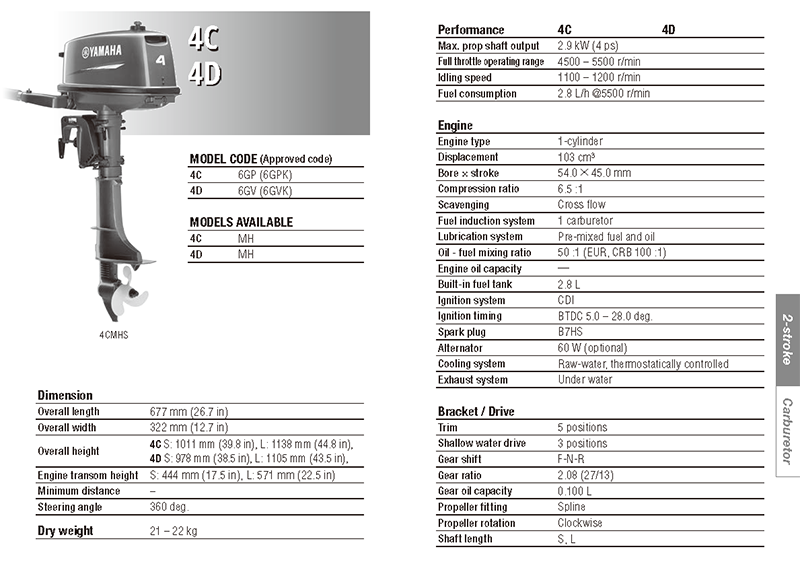

| Performance | |
| Max.prop Shaft Output | 2.9 kW (4 ps) |
| Full Throttle Operating Range | 4500 – 5500 r/min |
| Idling Speed | 1100 – 1200 r/min |
| Fuel Consumption | 2.8 L/h @5500 r/min |
| Engine | |
| Engine Type | 1-cylinder |
| Displacement | 103 cm³ |
| Bore X Stroke | 54.0 × 45.0 mm |
| Compression Ratio | 6.5 :1 |
| Starting Enrichment | Manual choke |
| Scavenging | Cross flow |
| Fuel Induction System | 1 carburetor |
| Oil fuel mixing ratio | 50 :1 (EUR, CRB 100 :1) |
| Lubrication System | Pre-mixed fuel and oil |
| Ignition System | CDI |
| Ignition Timing | BTDC 5.0 – 28.0 deg. |
| Spark Plug | B7HS |
| Alternator | 60 W (optional) |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Under water |
| Bracket / Drive | |
| Trim | 5 positions |
| Shallow Water Drive | 3 positions |
| Steering Angle | 360 deg |
| Gear Shift | F-N-R |
| Gear Ratio | 2.08 (27/13) |
| Gear Oil Capacity | 0.100 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 571 mm (22.5 in) |
