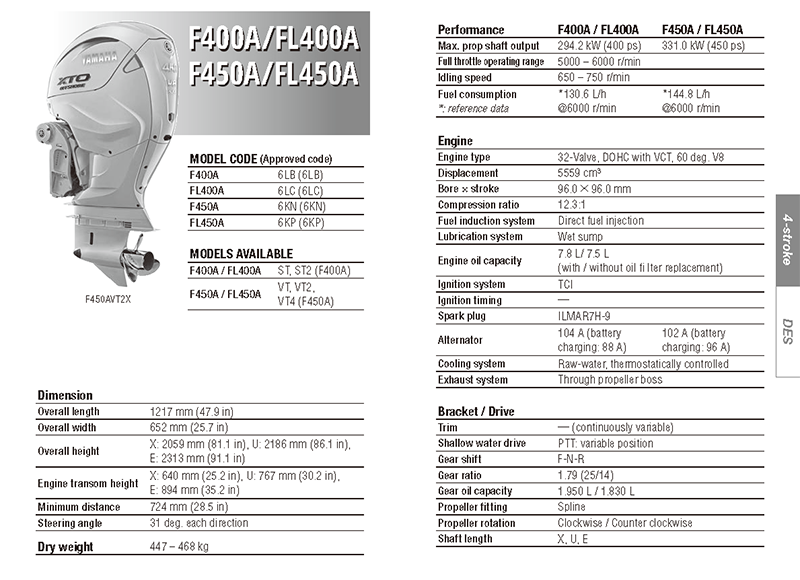

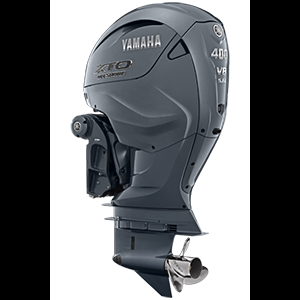

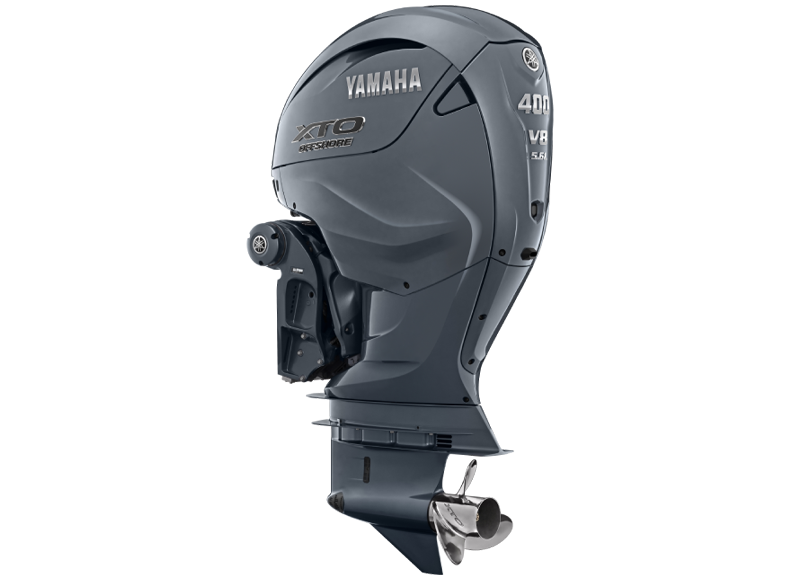

F450A / FL450A
331.0 kW (450 ps)
331.0 kW (450 ps)
Control system - Digital Electronic Control (DEC)
For enquiry, please whatsapp to 6612 0260.
| Performance | |
| Max.prop Shaft Output | 331.0 kW (450 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 650 – 750 r/min |
| Fuel Consumption | 144.8 L/h @6000 r/min |
| Engine | |
| Engine Type | 32-Valve, DOHC with VCT, 60 deg. V8 |
| Displacement | 5559 cm³ |
| Bore X Stroke | 96.0 × 96.0 mm |
| Compression Ratio | 12.3:1 |
| Fuel Induction System | Direct fuel injection |
| Lubrication System | Wet sump |
| Engine Oil Capacity | 7.8 L/ 7.5 L (with / without oil fi lter replacement) |
| Ignition System | TCI |
| Spark Plug | ILMAR7H-9 |
| Alternator | 102 A (battery charging: 96 A) |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 31 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 1.79 (25/14) |
| Gear Oil Capacity | F450A: 1.950 L / FL450A: 1.830 L |
| Propeller Fitting | Spline |
| Propeller Rotation | F450A: Clockwise / FL450A: Counter clockwise |
| Engine Transom Height | X: 640 mm (25.2 in), U: 767 mm (30.2 in) |
