F100BETX
73.6 kW (100 ps)
73.6 kW (100 ps)
For enquiry, please whatsapp to 6612 0260.

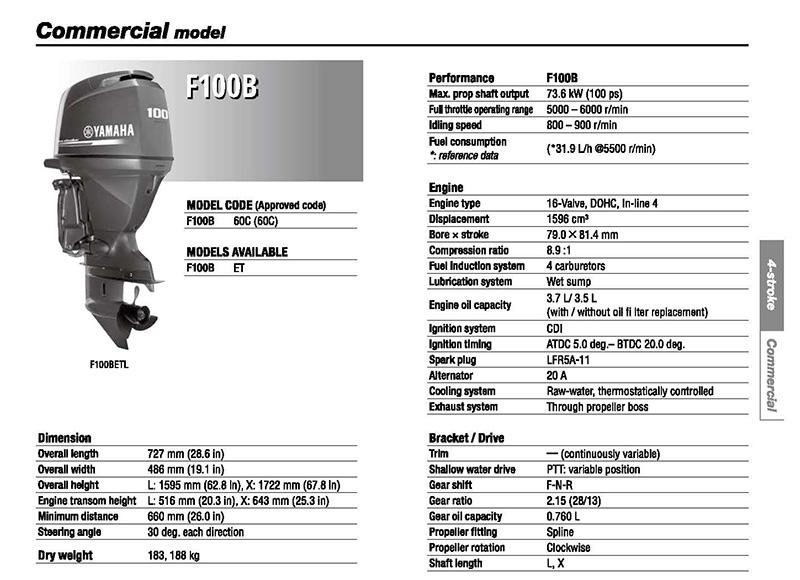

| Performance | |
| Max.prop Shaft Output | 73.6 kW (100 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 800 – 900 r/min |
| Fuel Consumption | 31.9 L/h @5500 r/min |
| Engine | |
| Engine Type | 16-Valve, DOHC, In-line 4 |
| Displacement | 1596 cm³ |
| Bore X Stroke | 79.0 × 81.4 mm |
| Compression Ratio | 8.9 :1 |
| Fuel Induction System | 4 carburetors |
| Lubrication System | Wet sump |
| Engine Oil Capacity | 3.7 L/ 3.5 L (with / without oil filter replacement) |
| Ignition System | CDI |
| Ignition Timing | ATDC 5.0 deg.– BTDC 20.0 deg. |
| Spark Plug | LFR5A-11 |
| Alternator | 20 A |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 30 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.15 (28/13) |
| Gear Oil Capacity | 0.760 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 643 mm (25.3 in) |
