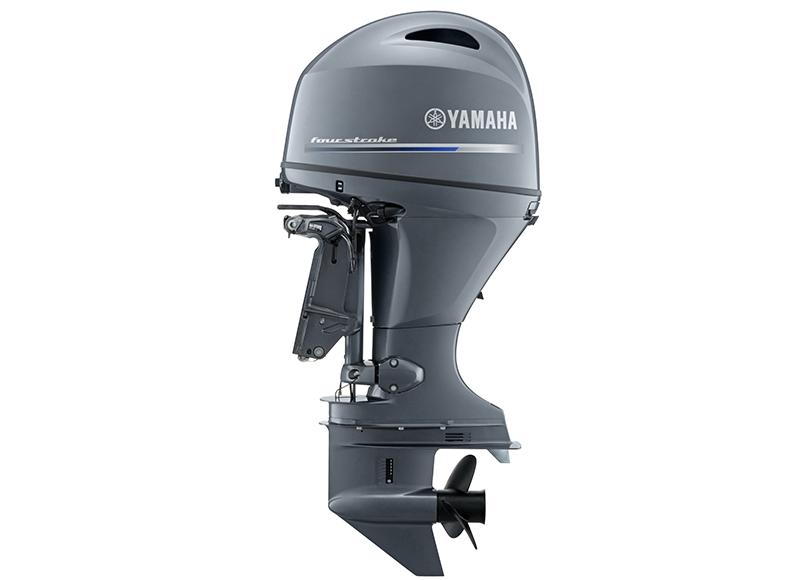

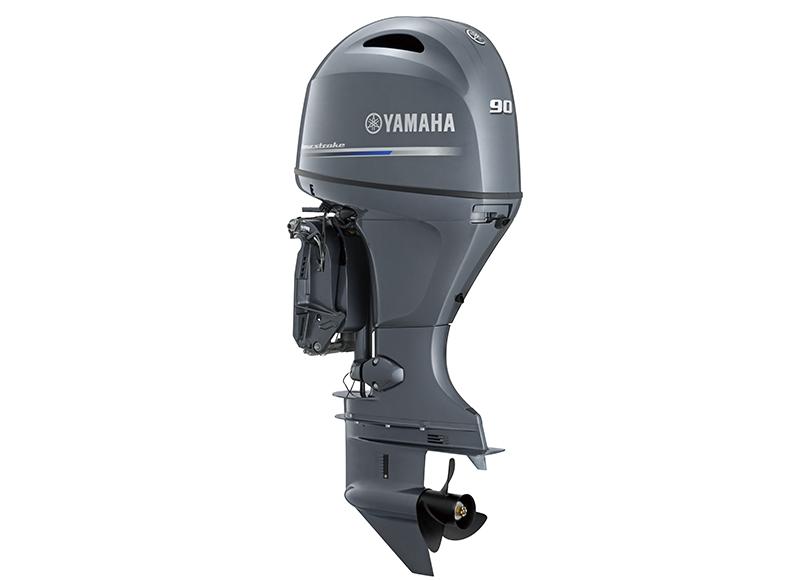

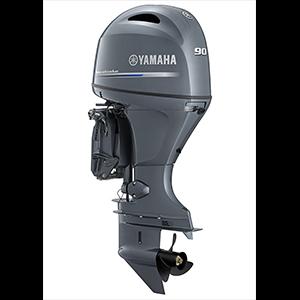

F90CETX
66.2 kW (90 ps)
66.2 kW (90 ps)
For enquiry, please whatsapp to 6612 0260.

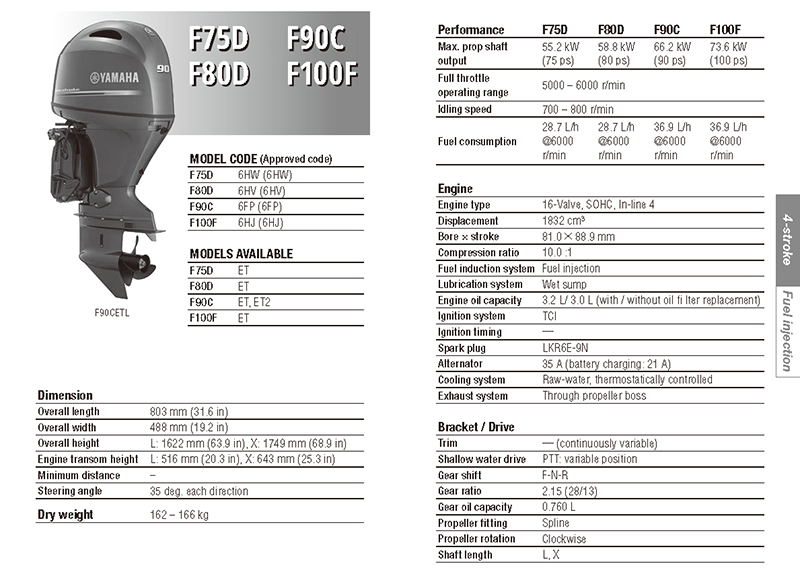

| Performance | |
| Max.prop Shaft Output | 66.2 kW (90 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 700 – 800 r/min |
| Fuel Consumption | 36.9 L/h @6000 r/min |
| Engine | |
| Engine Type | 16-Valve SOHC, In-line 4 |
| Displacement | 1832 cm³ |
| Bore X Stroke | 81.0× 88.9 mm |
| Compression Ratio | 10.0 :1 |
| Starting Enrichment | Fuel injection |
| Fuel Induction System | Fuel injection |
| Lubrication System | wet sump |
| Engine Oil Capacity | 3.2 L/ 3.0 L (with / without oil filter replacement) |
| Ignition System | TCI |
| Ignition Timing | BTDC 8.5 – BTDC 23.0 deg. |
| Spark Plug | LKR6E-9N |
| Alternator | 35 A (battery charging: 21 A) |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 35 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.15 (28/13) |
| Gear Oil Capacity | 0.760 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 643 mm (25.3 inch) |
