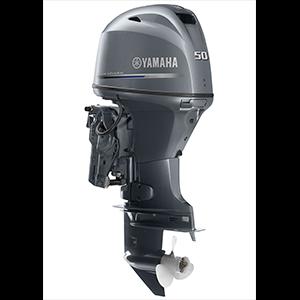

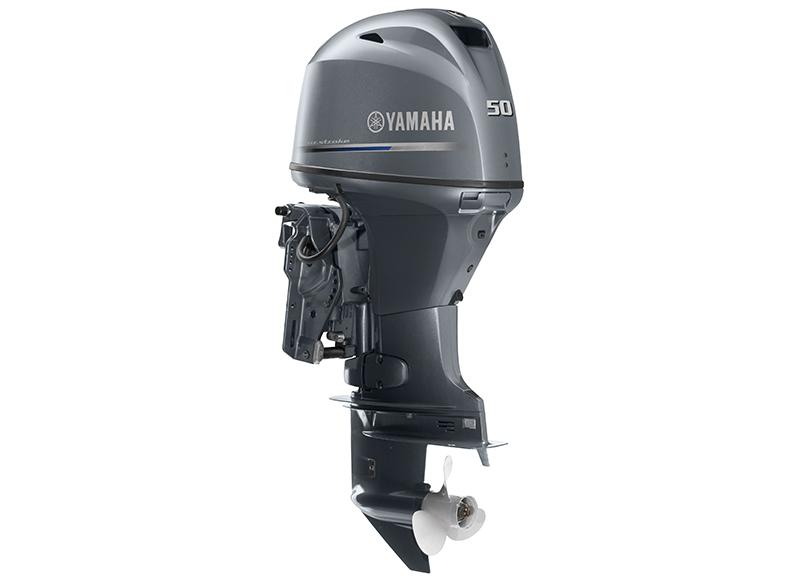

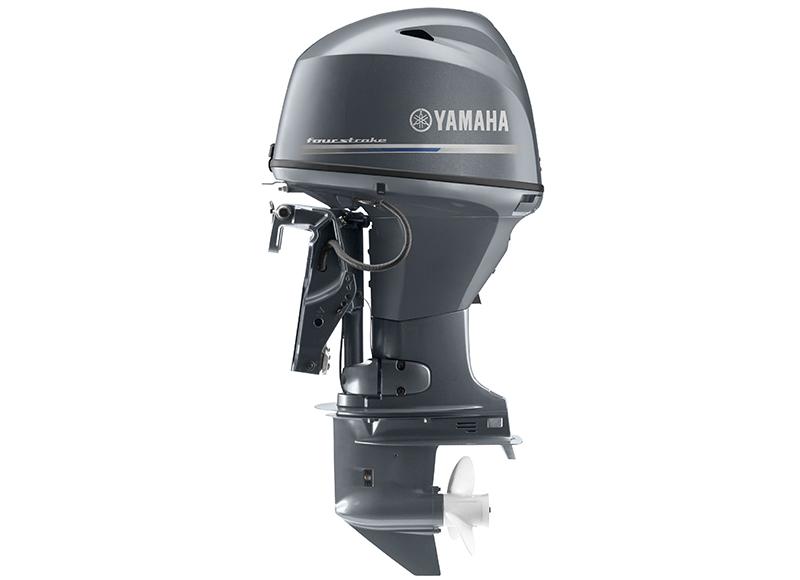

F50HETL
36.8 kW (50 ps)
36.8 kW (50 ps)
For enquiry, please whatsapp to 6612 0260.

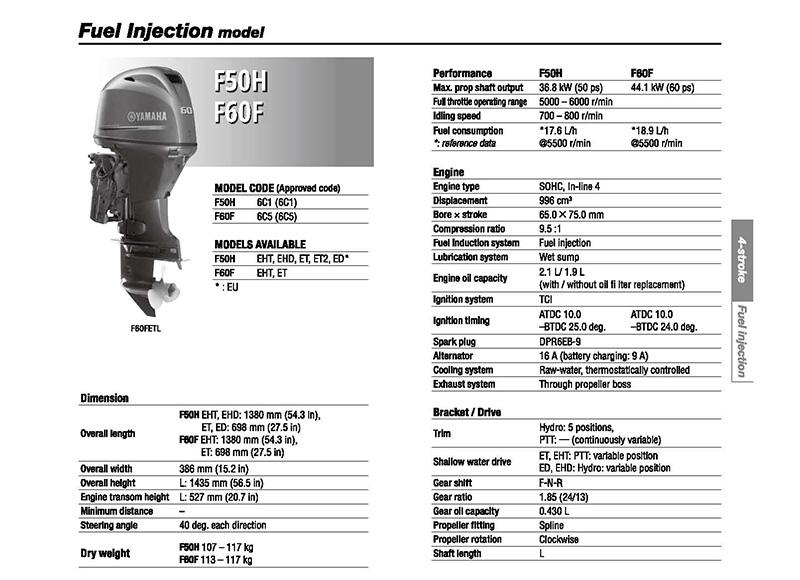

| Performance | |
| Max.prop Shaft Output | 36.8 kW (50 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 700 – 800 r/min |
| Fuel Consumption | 17.6 L/h @5500 r/min |
| Engine | |
| Engine Type | SOHC, In-line 4 |
| Displacement | 996 cm³ |
| Bore X Stroke | 65.0 × 75.0 mm |
| Compression Ratio | 9.5 :1 |
| Starting Enrichment | Fuel injection |
| Fuel Induction System | Fuel injection |
| Lubrication System | wet sump |
| Engine Oil Capacity | 2.1 L/ 1.9 L (with / without oil filter replacement) |
| Ignition System | TCI |
| Ignition Timing | ATDC 10.0 – BTDC 25.0 deg. |
| Spark Plug | DPR6EB-9 |
| Alternator | 16 A (battery charging:9 A) |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | Hydro：5 positions |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 40 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 1.85 (24/13) |
| Gear Oil Capacity | 0.430 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 527 mm (20.7 inch) |
