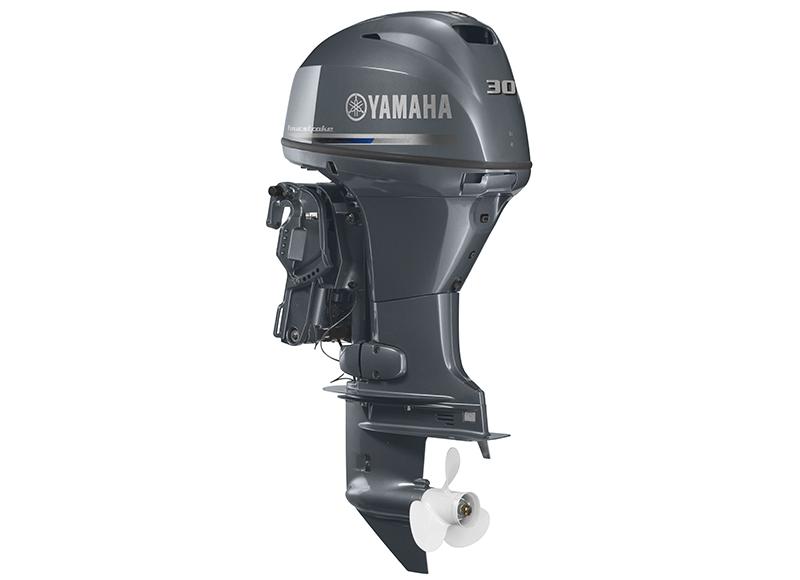

F30BETL (F30LA)
22.1 kW (30 ps)
22.1 kW (30 ps)
For enquiry, please whatsapp to 6612 0260.

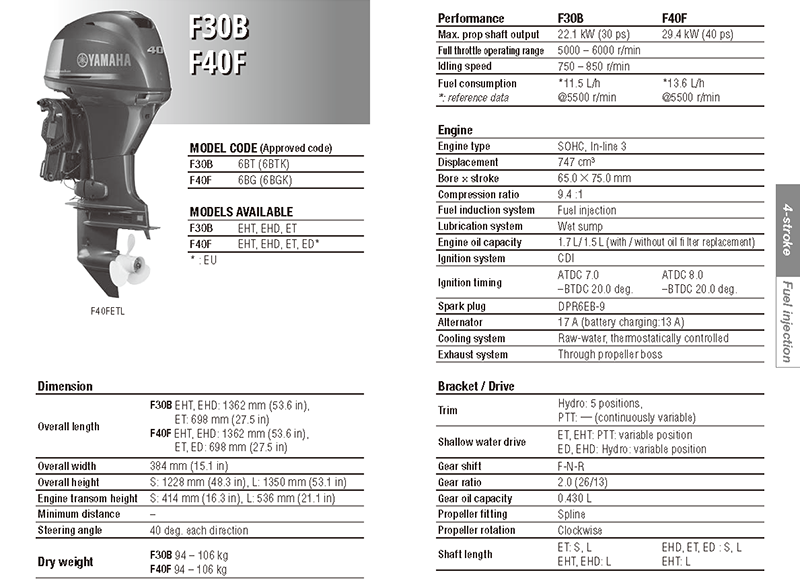

| Performance | |
| Max.prop Shaft Output | 22.1 kW (30 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 750 – 850 r/min |
| Fuel Consumption | 11.5 L/h @5500 r/min |
| Engine | |
| Engine Type | SOHC, In-line 3 |
| Displacement | 747 cm³ |
| Bore X Stroke | 65.0× 75.0 mm |
| Compression Ratio | 9.4 :1 |
| Starting Enrichment | Fuel injection |
| Fuel Induction System | Fuel injection |
| Lubrication System | wet sump |
| Engine Oil Capacity | 1.7 L/ 1.5 L (with / without oil filter replacement) |
| Ignition System | CDI |
| Ignition Timing | ATDC 7.0 – BTDC 20.0 deg. |
| Spark Plug | DPR6EB-9 |
| Alternator | 17 A (battery charging:13 A) |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | Hydro：5 positions |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 40 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.0 (26/13) |
| Gear Oil Capacity | 0.430 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 536 mm (21.1 inch) |
