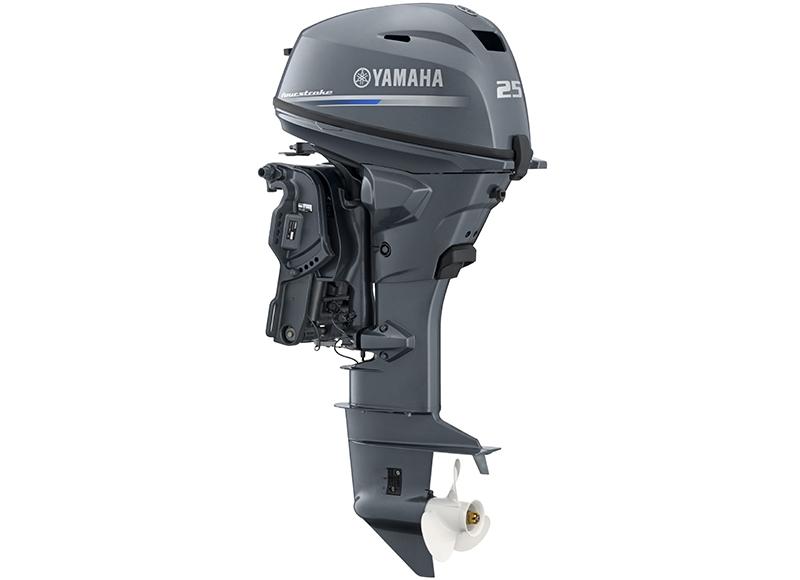

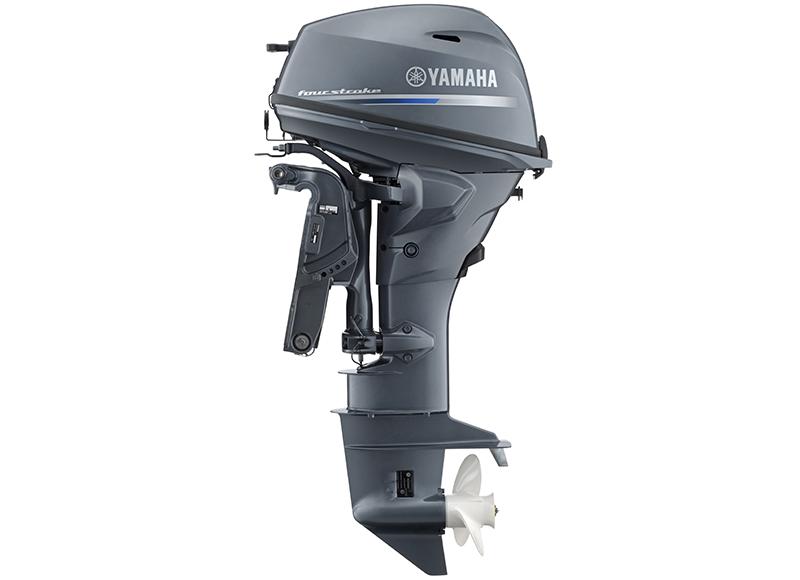

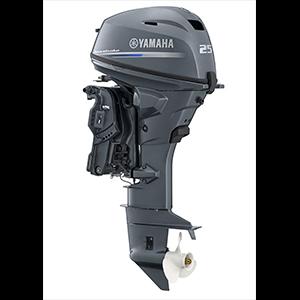

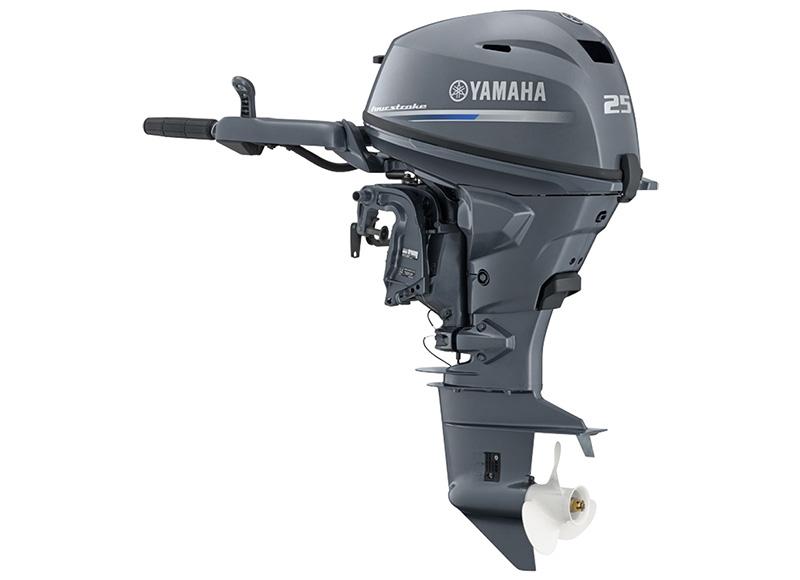

F25GETL
18.4 kW (25 ps)
18.4 kW (25 ps)
For enquiry, please whatsapp to 6612 0260.

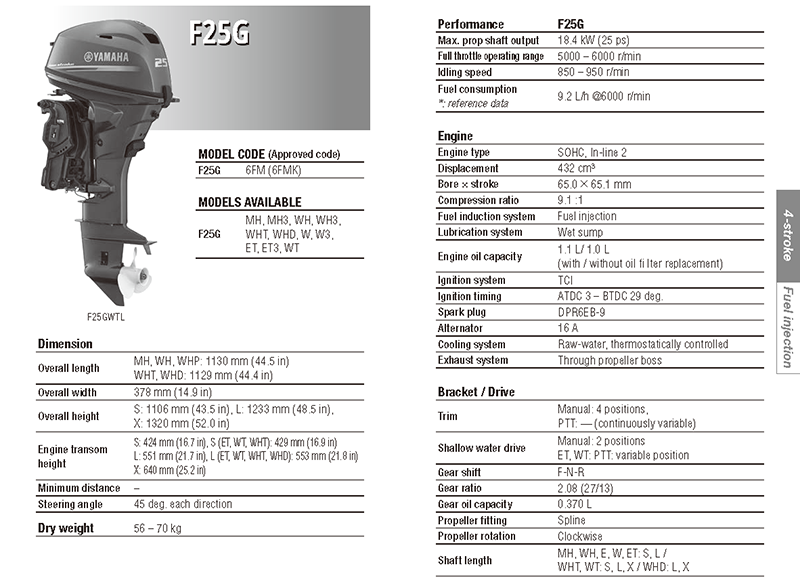

| Performance | |
| Max.prop Shaft Output | 18.4 kW (25 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 850 – 950 r/min |
| Fuel Consumption | 9.2 L/h @6000 r/min |
| Engine | |
| Engine Type | SOHC, In-line 2 |
| Displacement | 432 cm³ |
| Bore X Stroke | 65.0× 65.1 mm |
| Compression Ratio | 9.1 :1 |
| Starting Enrichment | Fuel injection |
| Fuel Induction System | Fuel injection |
| Lubrication System | wet sump |
| Engine Oil Capacity | 1.1 L/ 1.0 L (with / without oil filter replacement) |
| Ignition System | TCI |
| Ignition Timing | ATDC 3 – BTDC 23 deg. |
| Spark Plug | DPR6EB-9 |
| Alternator | 16 A |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | Manual: 4 positions |
| Shallow Water Drive | PTT: variable position |
| Steering Angle | 45 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.08 (27/13) |
| Gear Oil Capacity | 0.370 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 553 mm (21.8 inch) |
