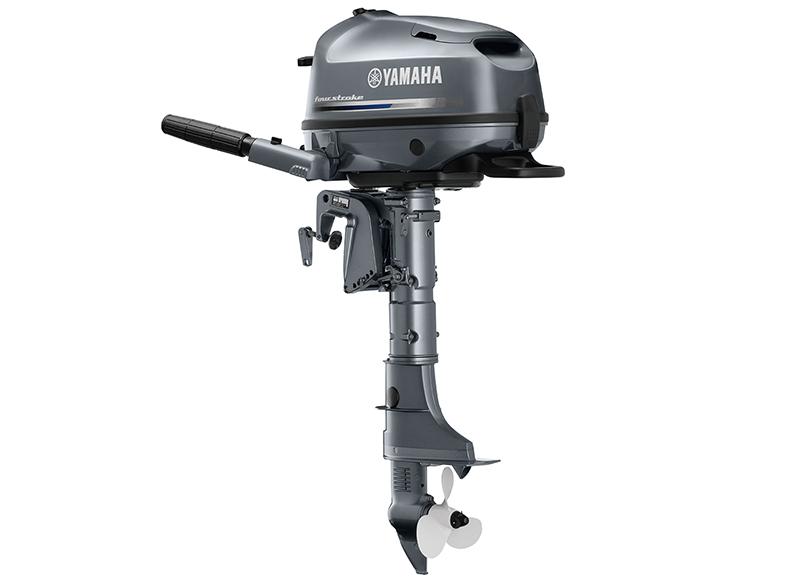

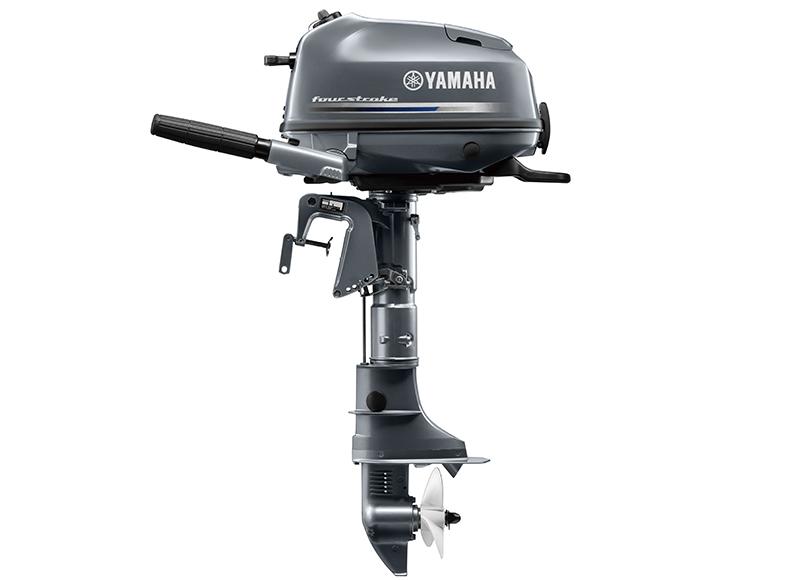

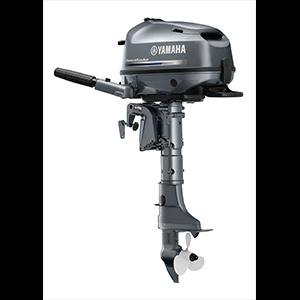

F4BMHL
2.9 kW (4 ps)
2.9 kW (4 ps)
For enquiry, please whatsapp to 6612 0260.

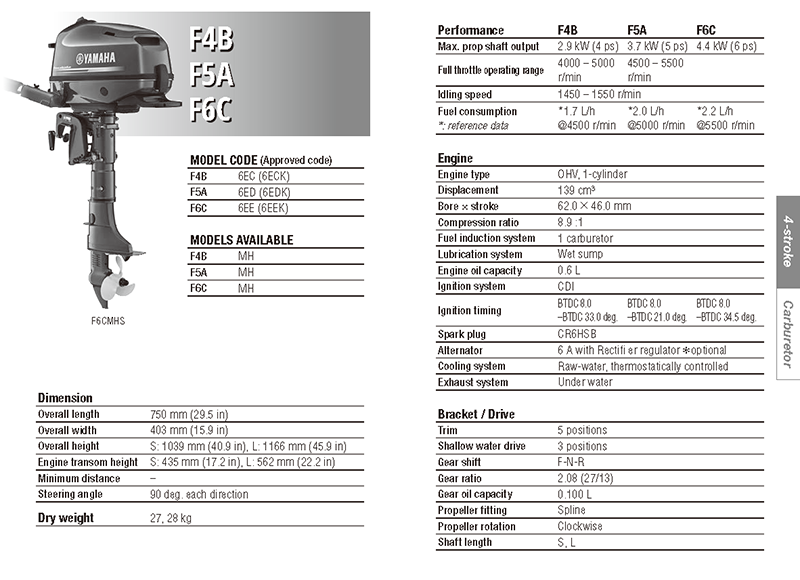

| Performance | |
| Max.prop Shaft Output | 2.9 kW (4 ps) |
| Full Throttle Operating Range | 4000 – 5000 r/min |
| Idling Speed | 1450 – 1550 r/min |
| Fuel Consumption | 1.7 L/h@4500 r/min |
| Engine | |
| Engine Type | OHV, 1-cylinder |
| Displacement | 139 cm³ |
| Bore X Stroke | 62.0 × 46.0 mm |
| Compression Ratio | 8.9 :1 |
| Starting Enrichment | Manual choke |
| Fuel Induction System | 1 carburetor |
| Lubrication System | Wet sump |
| Engine Oil Capacity | 0.6 L |
| Ignition System | CDI |
| Ignition Timing | BTDC 8.0 – BTDC 33.0 deg. |
| Spark Plug | CR6HSB |
| Alternator | 6 A with Rectifier regulator ＊optional |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Under water |
| Bracket / Drive | |
| Trim | 5 positions |
| Shallow Water Drive | 3 positions |
| Steering Angle | 90 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.08 (27/13) |
| Gear Oil Capacity | 0.100 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 562 mm (22.2 inch) |
