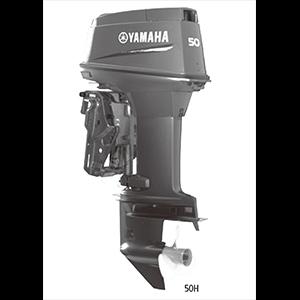

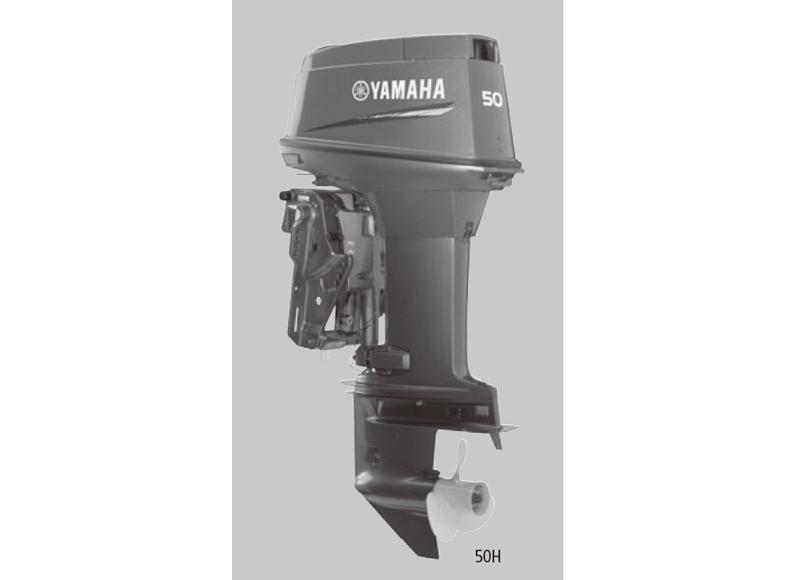

50HMHOS
36.8 kW (50 ps)
36.8 kW (50 ps)
For enquiry, please whatsapp to 6612 0260.

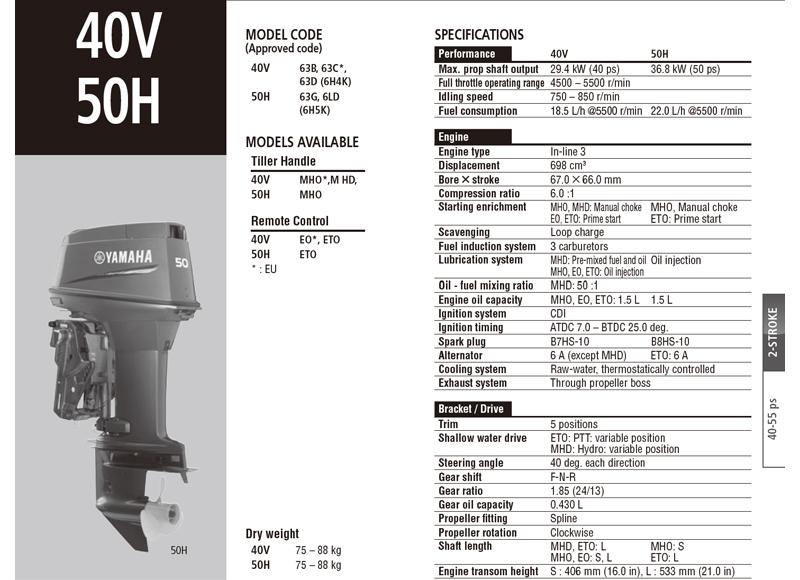

| Performance | |
| Max.prop Shaft Output | 36.8 kW (50 ps) |
| Full Throttle Operating Range | 4500 – 5500 r/min |
| Idling Speed | 750 – 850 r/min |
| Fuel Consumption | 22.0 L/h @5500 r/min |
| Engine | |
| Engine Type | In-line 3 |
| Displacement | 698 cm³ |
| Bore X Stroke | 67.0× 66.0 mm |
| Compression Ratio | 6.0 :1 |
| Starting Enrichment | Manual choke |
| Fuel Induction System | 3 carburetors |
| Lubrication System | Oil injection |
| Engine Oil Capacity | 1.5 L |
| Ignition System | CDI |
| Ignition Timing | ATDC 7.0 – BTDC 25.0 deg |
| Spark Plug | B8HS-10 |
| Alternator | ETO, WHTO: 6 A |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | 5 positions |
| Steering Angle | 40 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 1.85 (24/13) |
| Gear Oil Capacity | 0.430 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 406 mm (16.0 in) |
