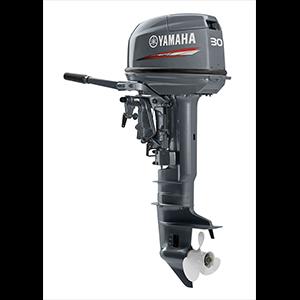

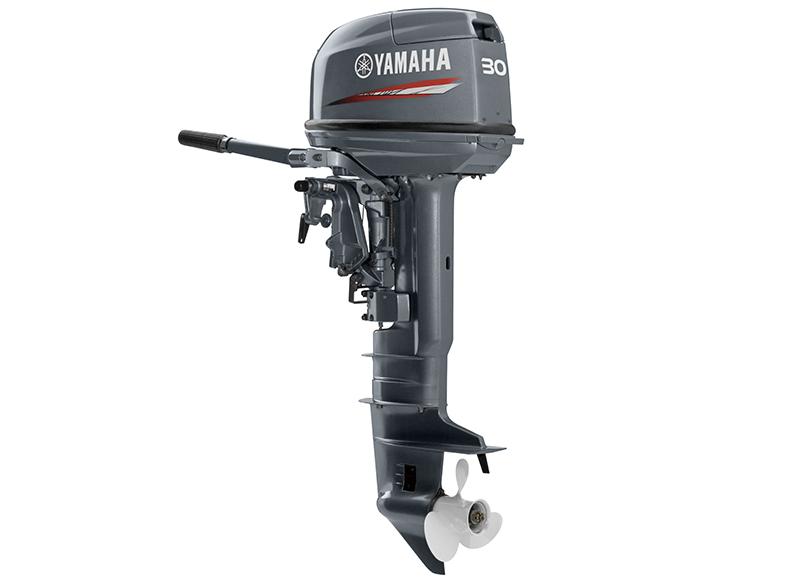

30HWL
22.1 kW (30 ps)
22.1 kW (30 ps)
For enquiry, please whatsapp to 6612 0260.

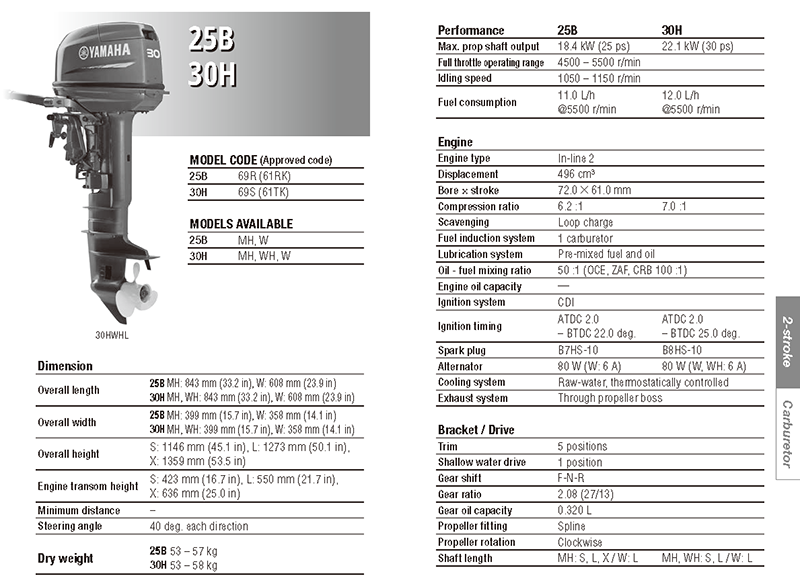

| Performance | |
| Max.prop Shaft Output | 22.1 kW (30 ps) |
| Full Throttle Operating Range | 4500 – 5500 r/min |
| Idling Speed | 1050 – 1150 r/min |
| Fuel Consumption | 12.0 L/h @5500 r/min |
| Engine | |
| Engine Type | In-line 2 |
| Displacement | 496 cm³ |
| Bore X Stroke | 72.0× 61.0 mm |
| Compression Ratio | 7.0 :1 |
| Scavenging | Loop charge |
| Fuel Induction System | 1 carburetor |
| Oil fuel mixing ratio | 50 :1 (OCE, ZAF, CRB 100 :1) |
| Lubrication System | Pre-mixed fuel and oil |
| Ignition System | CDI |
| Ignition Timing | ATDC 2.0 – BTDC 25.0 deg |
| Spark Plug | B8HS-10 |
| Alternator | 6 A |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | 5 positions |
| Shallow Water Drive | 1 position |
| Steering Angle | 40 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.08 (27/13) |
| Gear Oil Capacity | 0.320 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 550 mm (21.7 in) |
