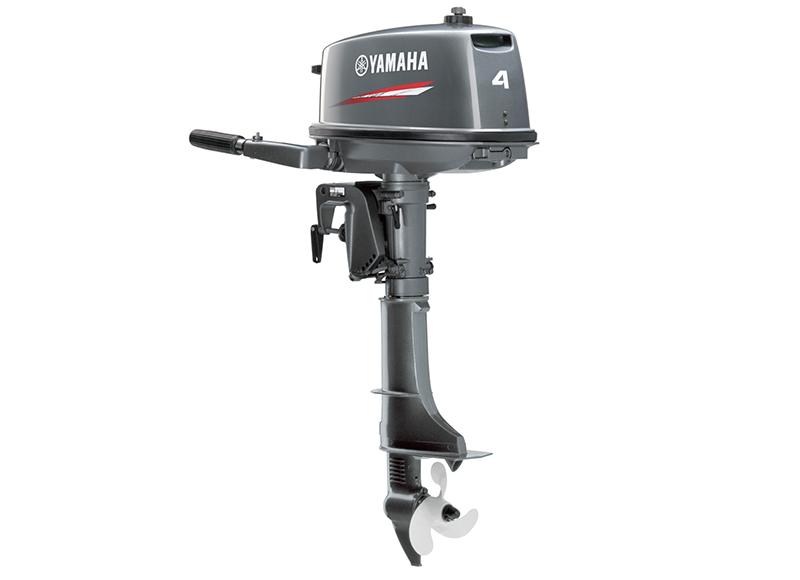

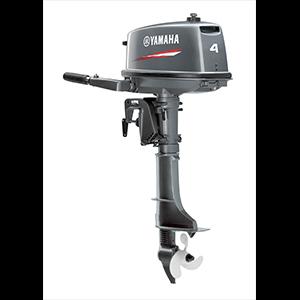

4CMHS
2.9 kW (4 ps)
HKD $9,780

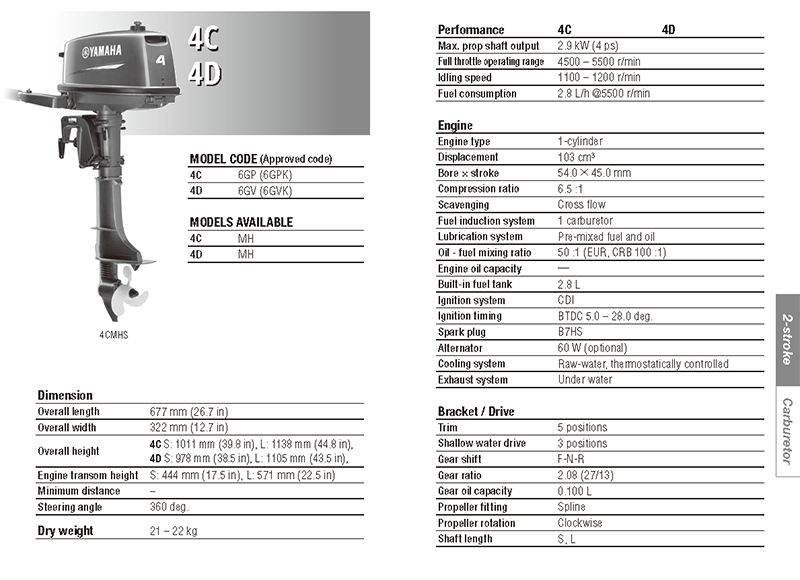

Performance
Max.prop Shaft Output 2.9 kW (4 ps)
Full Throttle Operating Range4500 – 5500 r/min
Idling Speed1100 – 1200 r/min
Fuel Consumption2.8 L/h @5500 r/min

Engine
Engine Type1-cylinder
Displacement103 cm³
Bore X Stroke54.0 × 45.0 mm
Compression Ratio6.5 :1
Starting EnrichmentManual choke
ScavengingCross flow
Fuel Induction System1 carburetor
Oil fuel mixing ratio50 :1 (EUR, CRB 100 :1)
Lubrication SystemPre-mixed fuel and oil
Ignition SystemCDI
Ignition TimingBTDC 5.0 – 28.0 deg
Spark PlugB7HS
Alternator60 W (optional)
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemUnder water

Bracket / Drive
Trim5 positions
Shallow Water Drive3 positions
Steering Angle360 deg.
Gear ShiftF-N-R
Gear Ratio2.08 (27/13)
Gear Oil Capacity0.100 L
Propeller FittingSpline
Propeller RotationClockwise
Engine Transom Height444 mm (17.5 in)
